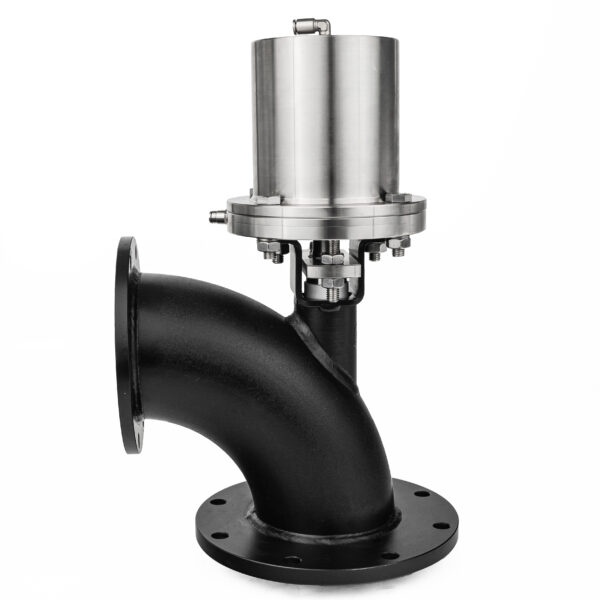

100mm pneumatically operated Flush Valve 60 degree bend, gasket sealing disc and flanged outlet

The AMF pneumatic flush valve is a primary valve fitted directly to the tanks sump flange with a sealing disc that opens directly into the tank shell and the product above it. Within the valve body is a single shaft and the absence of springs and other mechanical parts mean the valve is effective in discharging viscous products (to be used in conjunction with road tankers with internal flues, and external heat box). Designed as a hard-working valve the internal seals can be compressed to compensate for wear and tear by way of external adjustment – even when the tank is fully loaded. Depending on the application, the valve can be ordered with a 60 or 90 degrees bends, and either a gasket or taper sealing disc arrangement.
