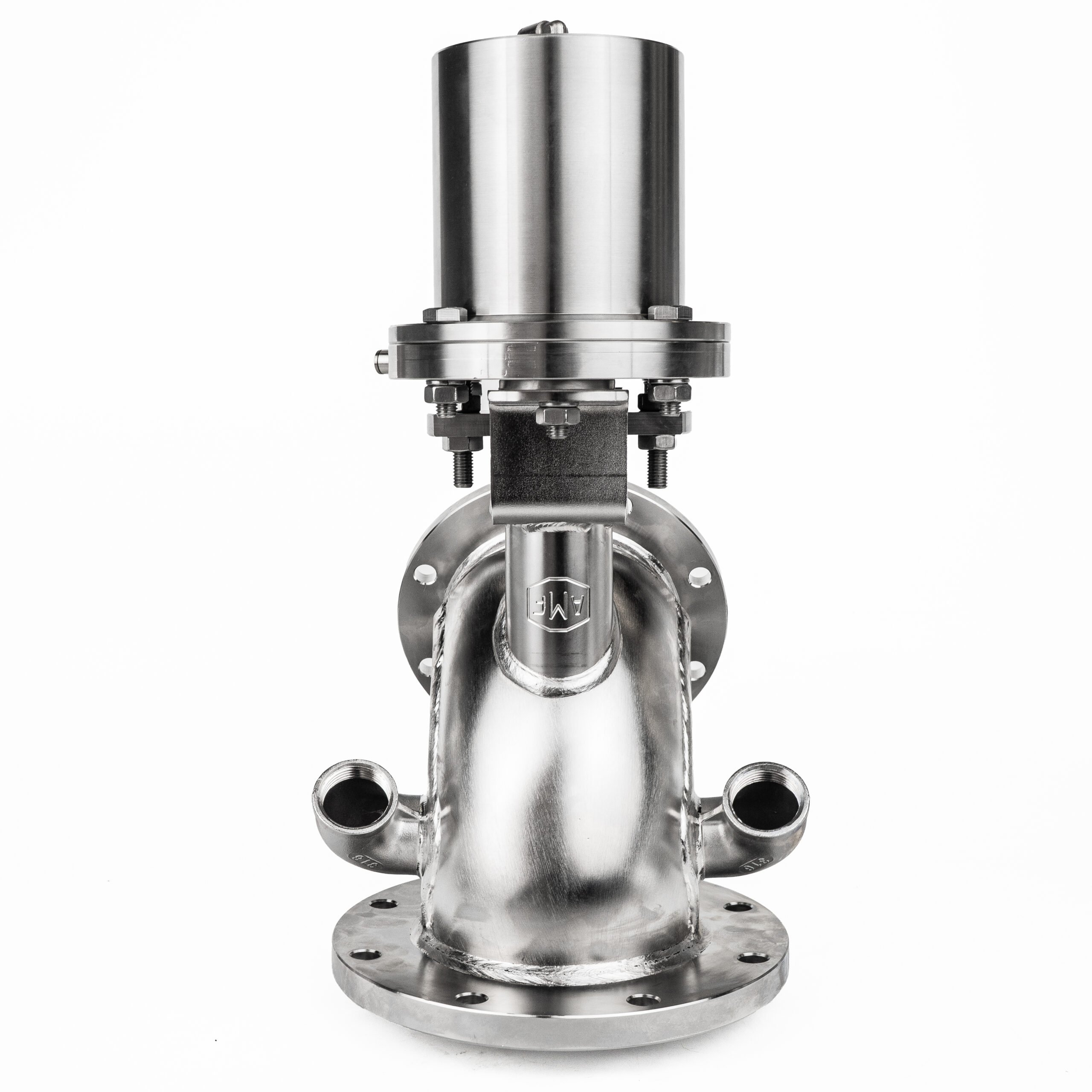

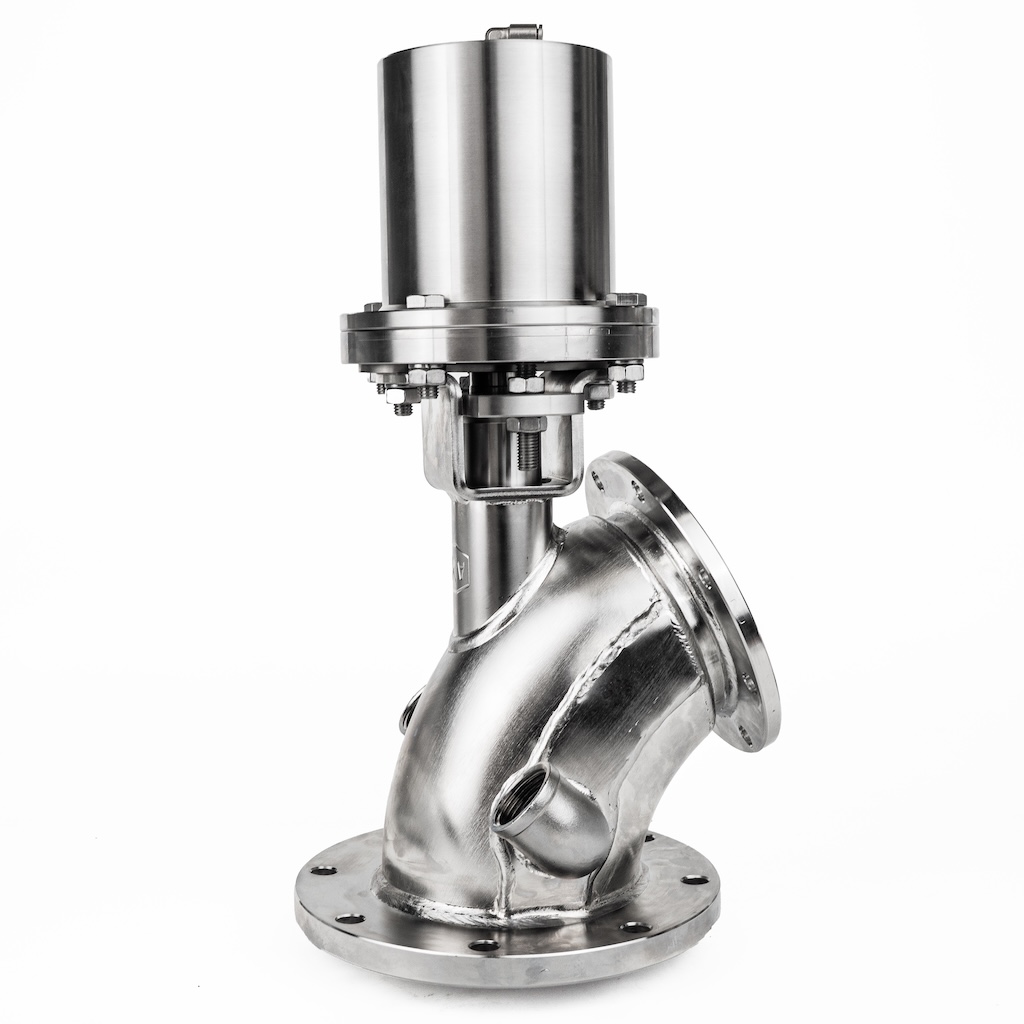

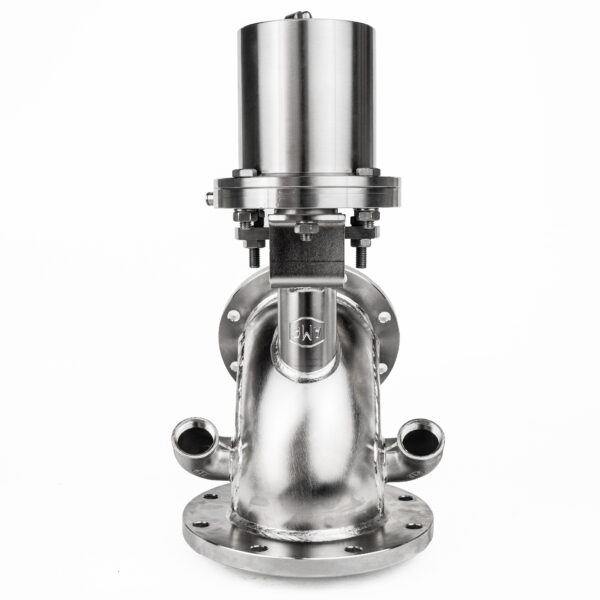

100mm manually operated heavy duty, steam jacketed Flush Valve with 60 degree bend, gasket sealing disc and flanged outet

he AMF pneumatic heavy duty steam jacketed flush valve is a primary valve fitted directly to the road tanker sump flange for both loading and off-loading products. The valve is designed with an outer jacket, which is heated via steam, to prevent temperature sensitive products from solidify inside the valve body (to be used in conjunction with road tankers with internal flues, and external heat box). This valve is fitted with a heavy-duty spindle and sealing disc (aka poppet) to break through crusts formed directly above. Within the valve body is a single shaft and the absence of springs and other mechanical parts mean the valve is effective in discharging viscous products (to be used in conjunction with road tankers with internal flues, and external heat box). Designed as a hard-working valve the internal seals can be compressed to compensate for wear and tear by way of external adjustment – even when the tank is fully loaded. Depending on the application, the valve can be ordered with a 60 or 90 degrees bends, and either a gasket or taper sealing disc arrangement.
