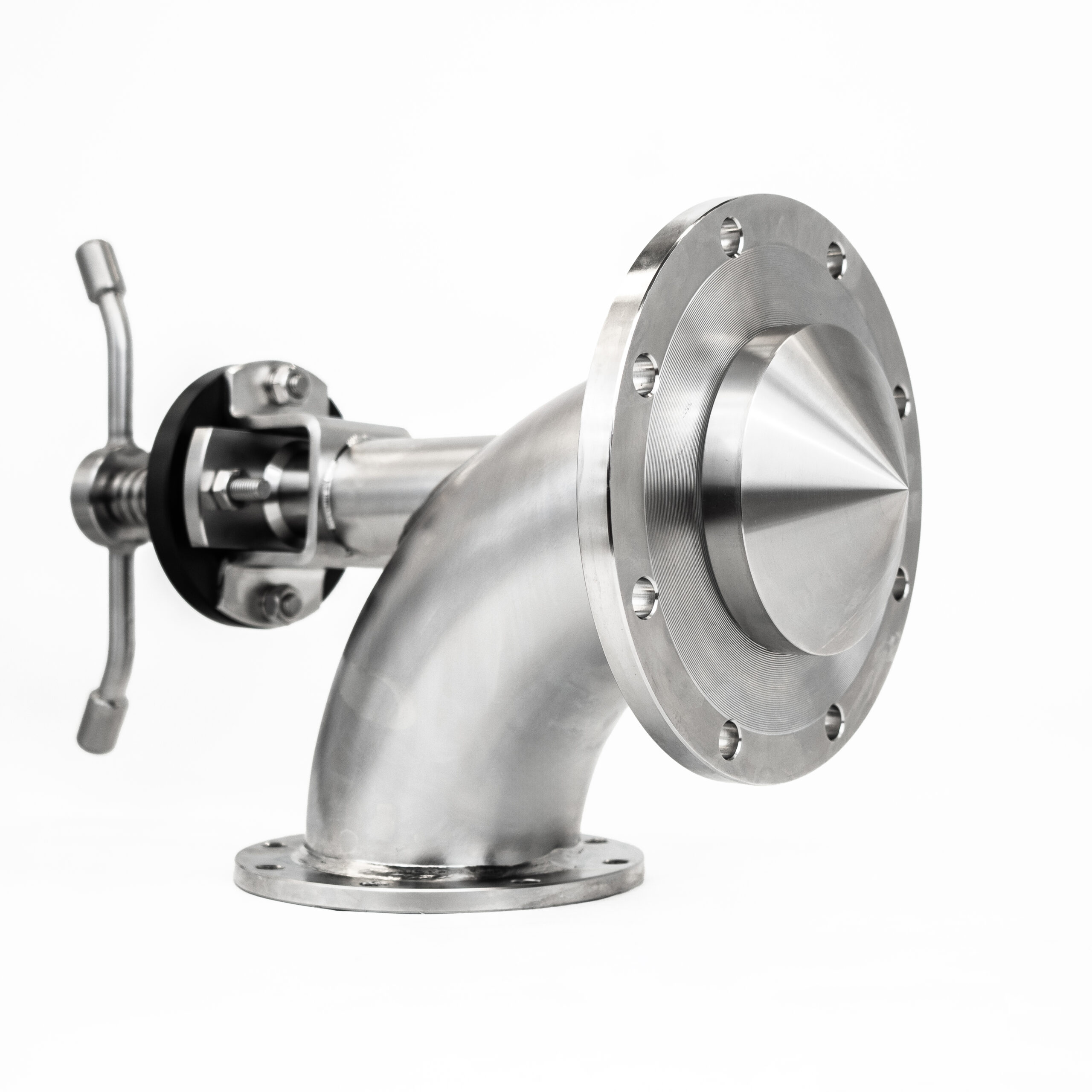

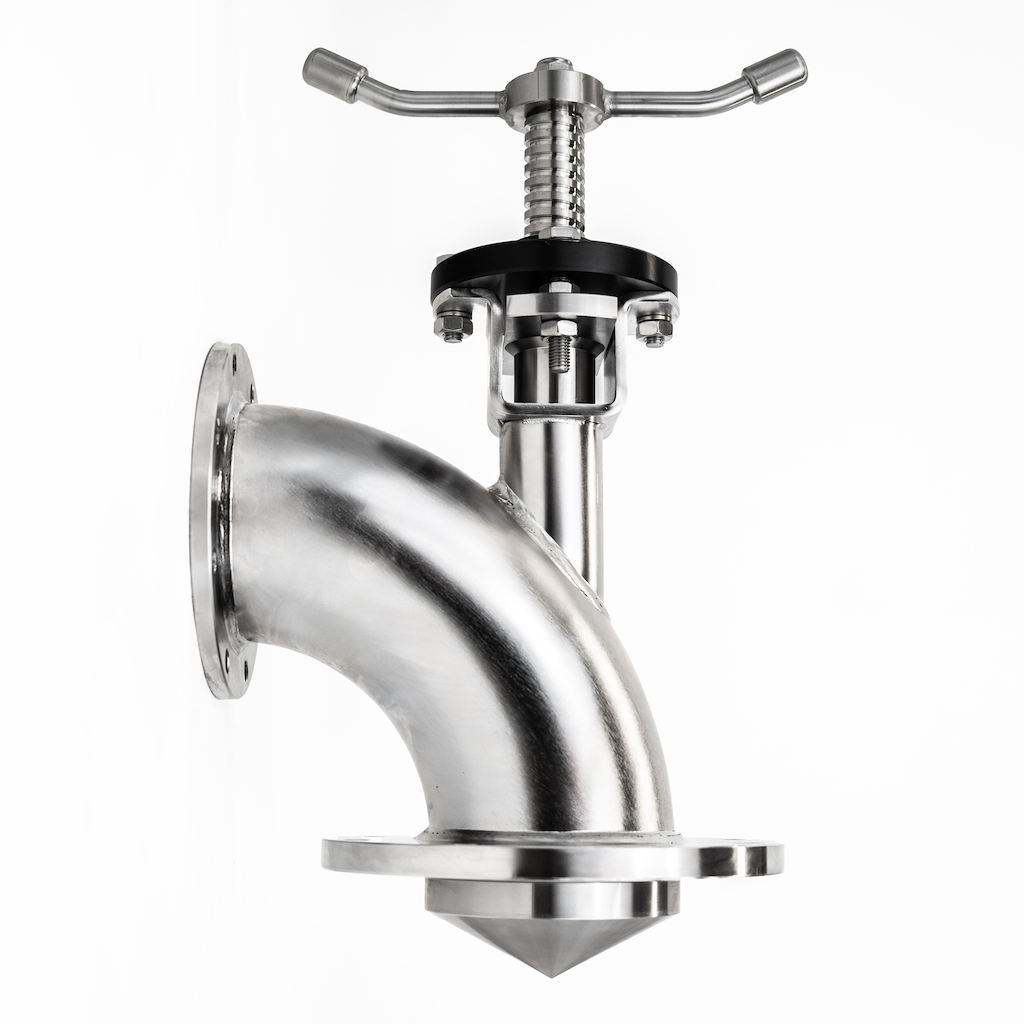

100mm manually operated Flush valve 90 degree bend, Crust breaker gasket sealing disc and flanged outlet

The AMF heavy duty flush valve is a primary valve fitted directly to the road tanker sump flange for both loading and off-loading products. The valve is fitted with a heavy-duty spindle and crust breaker sealing disc (aka poppet) to break through partly solidified products such as Bitumen or Ammonium Nitrate (to be used in conjunction with road tankers with internal flues, and external heat box). Designed as a hard-working valve the internal seals can be compressed to compensate for wear and tear by way of external adjustment – even when the tank is fully loaded. Depending on the application, the valve can be ordered with a 60 or 90 degrees bends, and either a gasket or taper sealing disc arrangement.
